Full Automatic PVC/PET/PE/PS plastic blister Hydraulic Die Cutting Machine With Mechanical Claw

Detail
Product Description

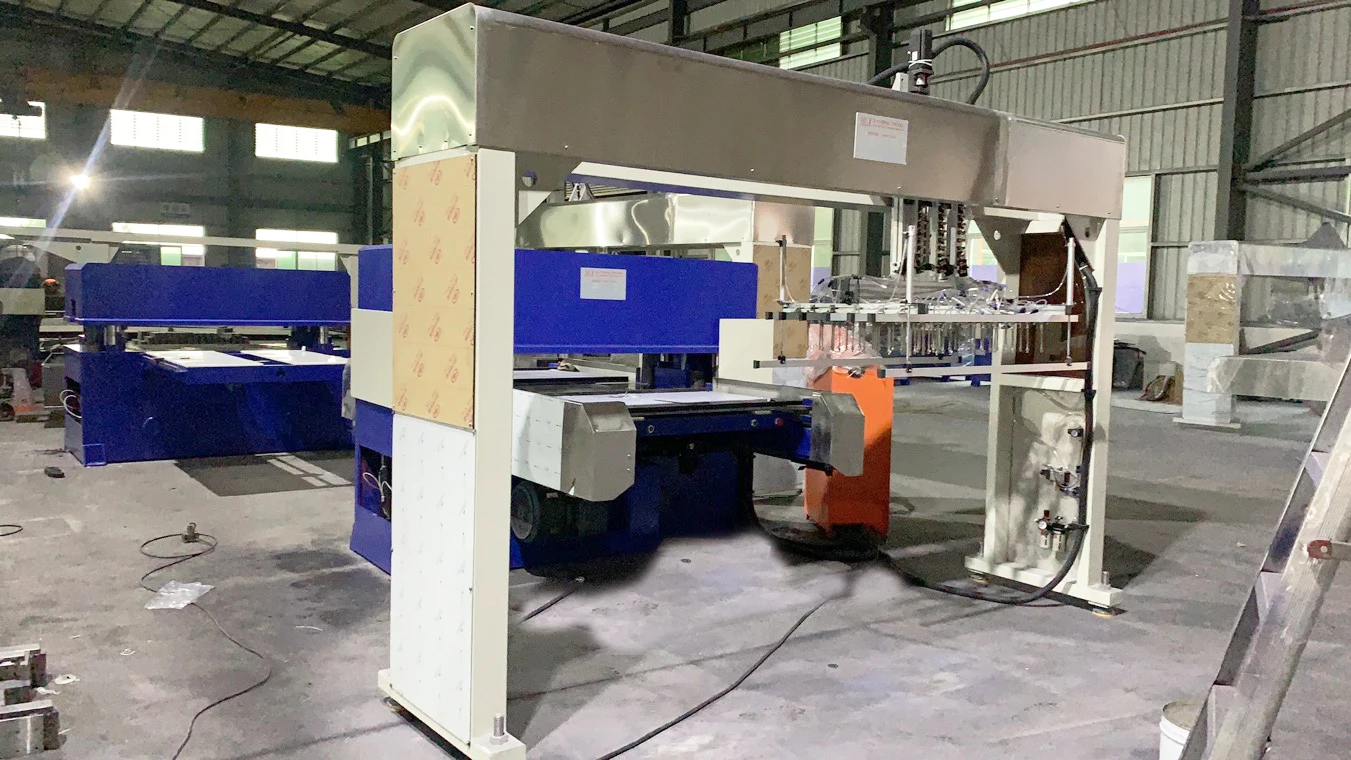

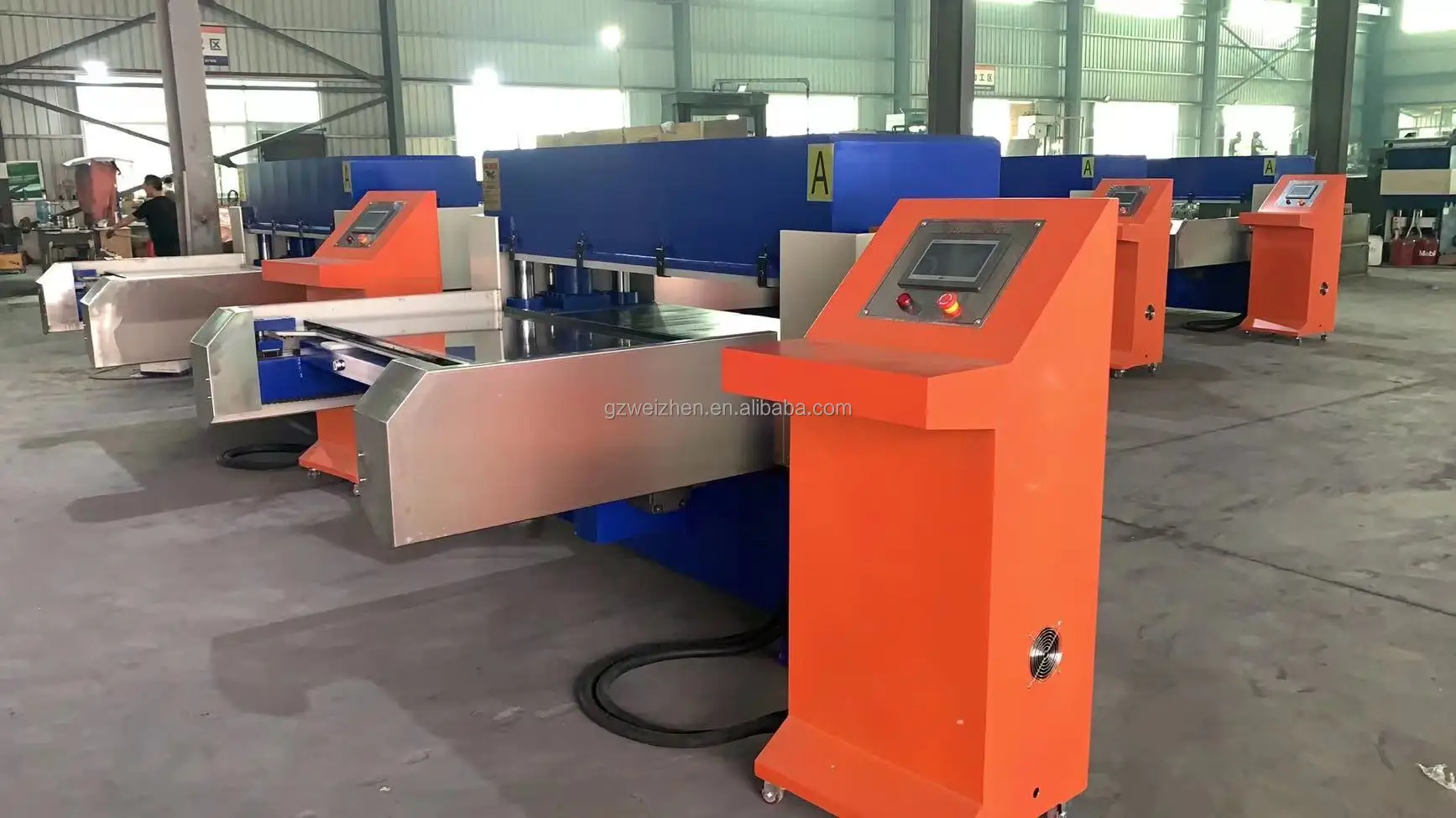

Automatic Hydraulic Die Cutting Machine With Mechanical Claw

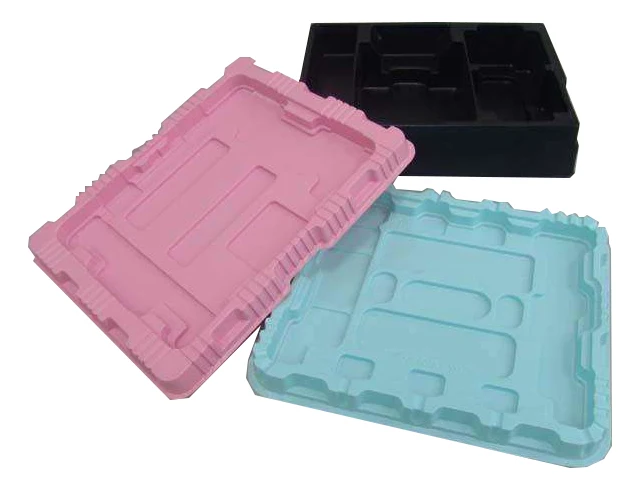

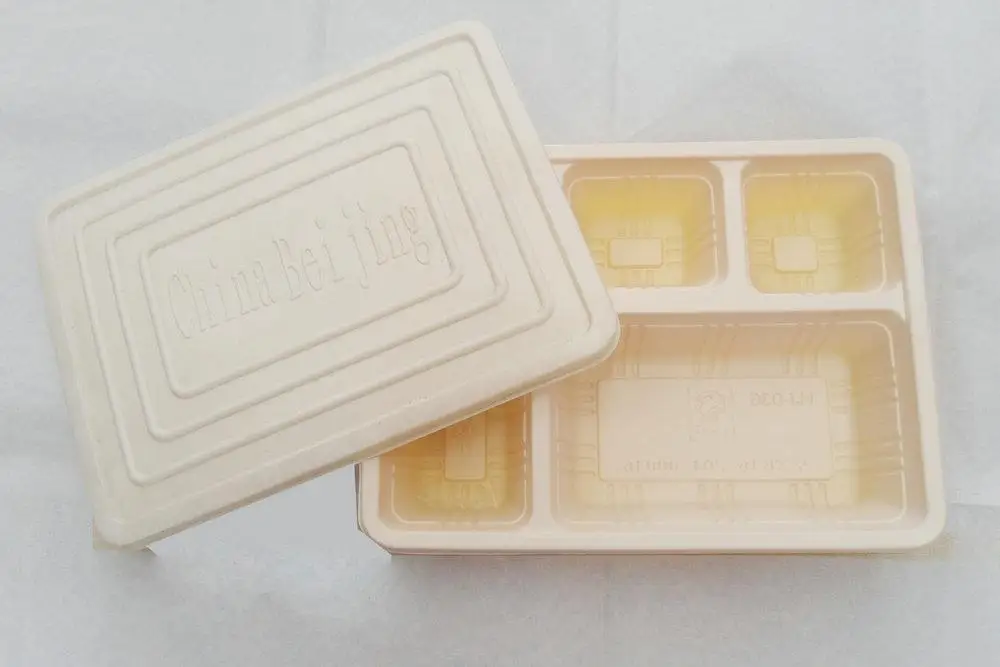

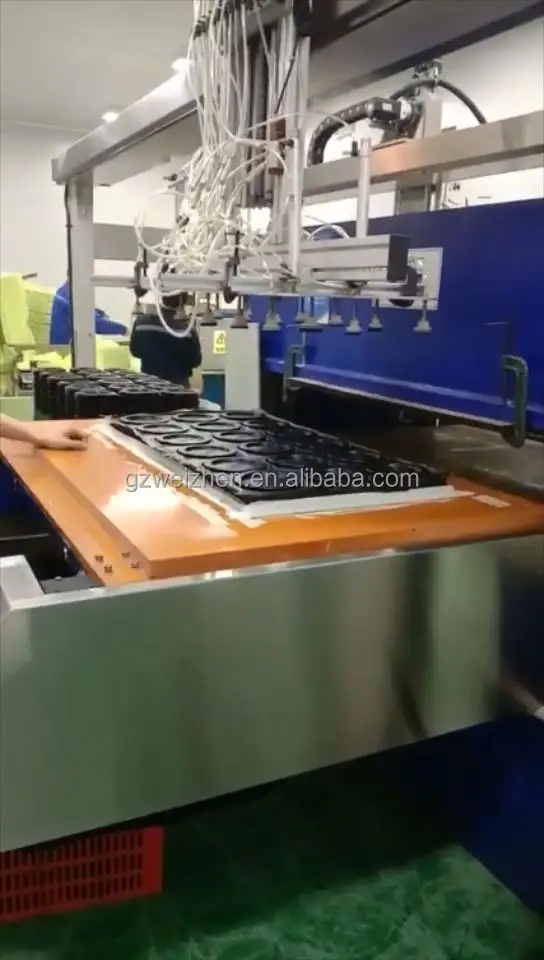

This automatic die cutting machine is working with mechanical claw,have PLC system and touch screen,can cut blister,plastic and PS foam products such as disposable food container,cup cover,food/cosmetic tray,fruit box,etc.
  • Description of application effect

1,Die cutting machine working with the   mechanical claw,have PLC system and LCD   touch screen, Easyhandle, low failure rate,   fast cutting.

2, Dual cylinders and precise 4-column   automatic equilibrium joint structure, which   can guarantee the same cutting depth of each cutting position.

3, Knife mould setting device, Which can   perform high/low knife model adjustment at   ease ,in accuracy and promptness.

4, Automatic slow cutting when the cutting   board presses downward and touches the   knife. ensuring no size error between the top and bottom layers of cutting materials.

5, Centralized lubricating system guarantees the precision of the machine and makes the machine durable.

6,Can work in automatic, manual modes, and two-side working, one-side working mode.


Specification
Model
Cutting force
Cutting area
Cutting thickness
Power
Dimension
Weight
WZ-10012
100T
1400*800mm(Can be customized)
100mm
7.5kw
2500*1500*1500mm
6200kg
WZ-12012
120T
1400*800mm(Can be customized)
100mm
9.5kw
2600*1500*1500mm
7100kg
WZ-15012
150T
1600*800mm(Can be customized)
100mm
11kw
2680*1500*1500mm
7800kg
