PE/EPE/EVA Foam Plastic Hot melt glue machine

Detail
Product Description
Single/Double roller hot melt glue machine
Used for materials such as EPE, sponge, foam, shoe material, EVA to be coated evenly with hot melt glue.
Features:

1, Novel design, attractive appearance and compact and rational structure.

2, Intelligent control and easyhandle.

3,Fast melting down, the amount of glue can be adjusted and the speed of operating can also be adjusted.

4,Fully enclosed structure and no leaking glue.

5,The whole machine has protection functions such as overheat, short circuit, overload and creepage.

6,Especially used for thin and big size fittings to be coated.7,Upper roller can be easily disassembled and   assembled. Single roller and dual rollers can be changed easily.

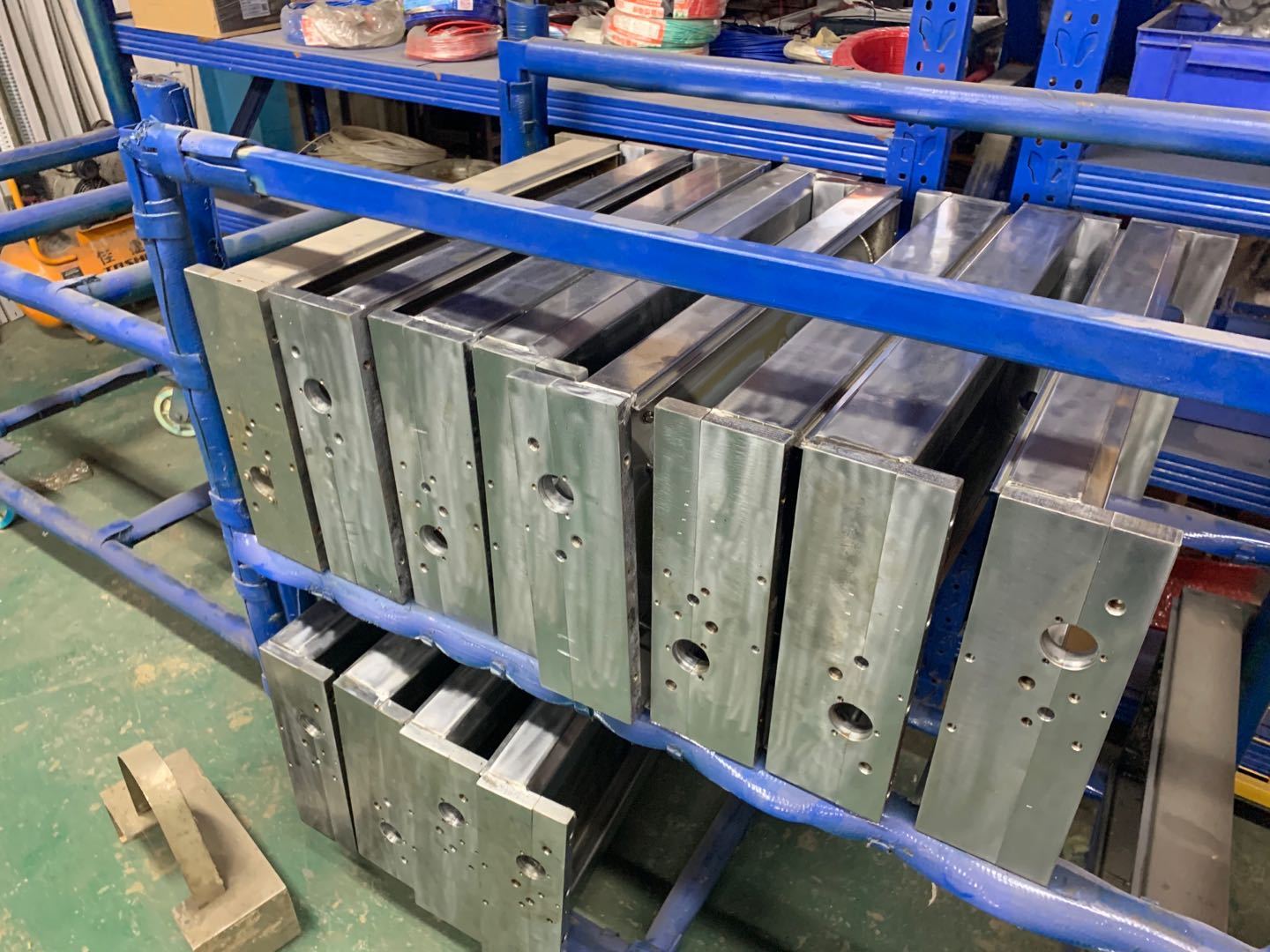

Detailed Images
 202233202233
Size Information

    Model

     Working width

     Working thickness

   Power

   Voltage

               Size

Weight

WZ-S600L

          600mm

      100/200/300mm

    2.2kw

   AC220V

      900*530*320mm

   90kg

WZ-S800L

          800mm

      100/200/300mm

    3kw

   AC220V

     1100*530*320mm

115kg

WZ-1000L

         1000mm

      100/200/300mm

    3.6KW

   AC220V

     1360*350*630mm

135kg
